WF10X/18mm L000X Trinocular Phase Contrast Microscope Education Binocular Light

Name: WF10X18mm L000X Trinocular Phase Contrast Microscope Education Binocular Light
Brand: Phidix
Price: 1 USD

Brand Name : Phidix

Model Number : M17106

Certification : IATF16949，CE

Place of Origin : China

MOQ : Negotiable

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union

Supply Ability : 1000 PCS/Month

Delivery Time : 15-20 Work Days

Packaging Details : 1 PC/Carton

Color : White

Customization : OEM, ODM

Warranty : 1 year

Drawtube : Binocular

Theory : Phase Contrast Microscope

Lead-time : 15-20 Work Days

Magnification : 40X~1000X

Eyepiece : WF10X/18mm

Focusing : Coarse And Fine Adjustment Focusing

Nosepiece : Quadruple Nosepiece

Stage : Double Layers Mechanical Stage

Contact Now

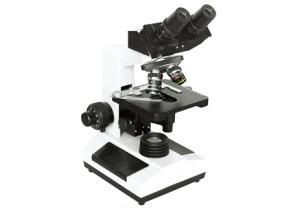

40X-1000X Binocular Economical Phase Contrast Microscope For Education

M17106 40X-1000X Binocular Economical Phase Contrast Microscope For Education. M17106 is a phase-contrast microscope special designed for school education application.

Features:

- Economical version for school education application.

- Brightness adjustable, 6V 20W halogen illumination and Plan-concave mirror.

- Seidentopf Binocular Head, 30° Inclined, Anti-Mould System.

Item	Description / Value
Eyepiece:	WF10X/18mm
Objective:	Infinity Achromatic objective 4X, 10X, 100X
Nosepiece:	Four-hole converter
Magnification:	40X~l000X
Stage:	Double Layer Mechanical Stage, 140140mm, Mvoing Range 5075mm
Focusing mechanism:	Coaxial Coarse & Fine Focusing. Fine Focusing Scale 0.002mm, Coarse Focusing Stroke 37.7mm/Rotation, With Tension Adjustment, With Up Limit
Condensor:	N.A.1.25 Abbe Condenser, Iris Diaphargm, With Filter Holder
Phase Contrast:	Phase Contrast Objective 40x; Phase Contrast Diaphragm 40x; Abbe Condenser N.A.1.25; Centering Telescope 10x; Green Filter.
Filter:	Blue, Yellow, Green
