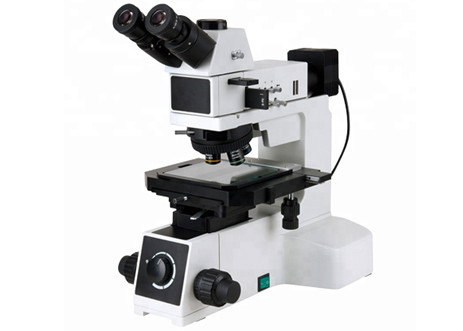

Digital Reflected Light Transmission Optical Microscope 10000X 5000X Polarizing

Brand Name : Phidix

Model Number : M14104

Certification : IATF16949，CE

Place of Origin : China

MOQ : Negotiable

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union

Supply Ability : 1000 PCS/Month

Delivery Time : 15-20 Work Days

Packaging Details : 1 PC/Carton

Color : White

Customization : OEM, ODM

Packing : 1 PC/Carton

Warranty : 1 year

Drawtube : Trinocular

Theory : Metallurgical Microscope

Lead-time : 15-20 Work Days

Eyepiece : PL10X

Application : Industrial Inspection

Magnification : 50X-1000X

Illumination : Transmission and Reflection

Viewing head : Trinocular Head

Objective : Infinity Plan Achromatic Objectives

Contact Now

Metallographic Analysis Optical 1000X 5000X 10000X Digital Polarizing Metallurgical Microscope

M14104 Metallographic Analysis Optical 1000X 5000X 10000X Digital Polarizing Metallurgical Microscope. M14104 is a research microscope with optional observation method Bright field/dark field/polarizing/DIC and widely used in various industrial area.

Features:

- Infinity plan achromatic objectives make the image clear, sharp and in high contrast.

- It is suitable for PCB cross section analysis, layer thickness measurement, LCD checking, metal or nonmetal material analysis etc.

Item Description / Value
Optical system: Chromatic aberration correction infinity optical system
Observation method: Light field / inclined illumination / polarized light/DIC
View tube: 30°hinge type ternary,splitting ratio, binocular: ternary=100:0 or 50:50
Objective: LMPL infinity long working distance metallurgical objective 5X, 10X, 20X, 50X, 100X
Nosepiece: 5 hole introversive type converter with DIC slot
Stage: 4”Double mechanical mobile platform, Travel 105x 105mm, With metal plate platform, Right X and Y move the handwheel, Equipped with platform interface

Reflect illuminator

System:

With variable view of aperture and aperture, adjustable center;

With color filter slots and polarization device slot;

With oblique lighting switch lever.

Single high power LED 5 w, white,

light intensity continuously adjustable

Digital Reflected Light Transmission Optical Microscope 10000X 5000X Polarizing
